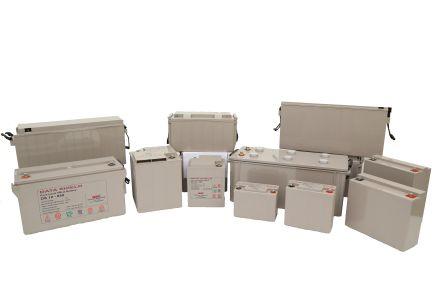

Lead Acid VRLA Pure Lead Batteries - Datashield

Pure lead thin plate technology is an advanced lead acid technology ideally suited to high rate discharge applications where TOTAL reliability is demanded.

Data centers are critical business hubs for banks, insurance companies, government institutions and many businesses. A totally reliable power supply is needed for their operations. UPS are typically used in parallel with diesel generators. On failure of the grid power the UPS takes on the load – while the generator is started, stabilized and switched to take over the critical loads. For the power system to be totally reliable the facilities engineer needs a totally reliable battery. This application requires the best available battery to deliver the load for a typical duration of 5 to 15 minutes. Thereafter the loads will have switched to the alternate genset power.

Uninterruptible Power Solution for Data Centers – the pure lead battery from HBL is designed to provide critical energy for short duration UPS loads, saving costly space – and being able to be installed close to active power components. The battery provides the maximum watts to minimize battery size – and it accepts extremely high rates of charge, allowing you to be protected more quickly in the event of repetitive outages.

Pure lead thin plate technology batteries are tested and validated by Intertek India PVT LTD as per IEC 60896-21 & 22:2004.

  • UPS
  • Switchgear
  • Turbine starting
12V Monoblocs

No. Of Models: 8
Capacity Range: 13Ah to 150Ah

12V Front Terminal Monoblocs :

  • No. Of Models: 2
    Capacity Range: 75Ah to 100Ah

2V :

  • No. Of Models: 1
    Capacity Range: 300 Ah

6V :

  • No. Of Models: 2
    Capacity Range: 120Ah to 140Ah


  • 15 years life in float applications at + 20 deg. C
  • 1 hour recharge
  • Sealed & Maintenance free operation
  • Wide operating temperature range: -40 °C to +55°C
  • Ah capacity required for 10 minute duty typically 40% less when compared to standard AGM UPS batteries
  • Space saving of 30% when compared to standard AGM UPS batteries
  • 2 year shelf life
